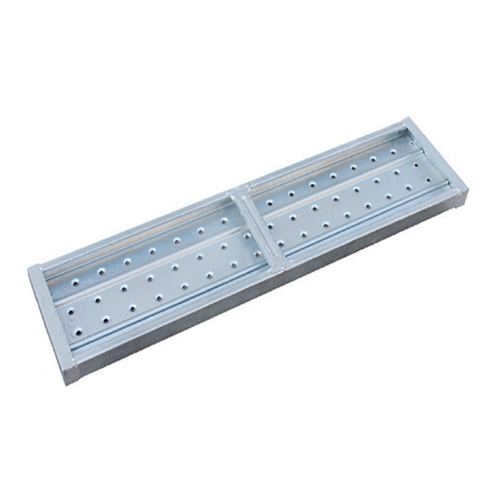

Steel Plank

Steel Plank

Standard: bs1139/en12811
Material: q195&q235 steel
Surface treatment: pre-galvanized/hot-galvanized
Application:outdoor/construction
Shipping port: tianjin port
Delivert time: within 20-30 days after receiving the lc or deposit
Sample: availbale, sample for free
Brand name:world scaffold
Certificate:iso,sgs,bv,tuv
  • Description
  • Specification
  • Features

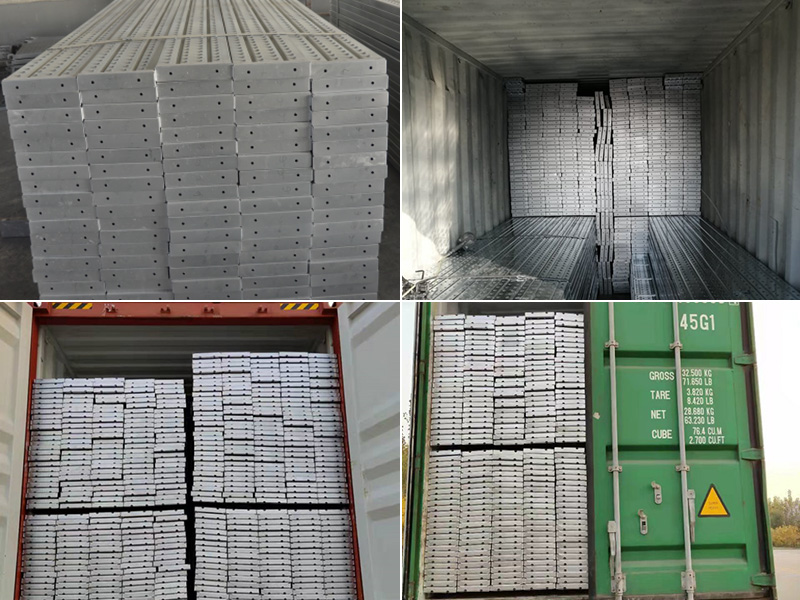

  • Packing
scaffolding steel plank is used in construction & oil and gas project.
hunan world scaffolding steel planks for exporting get a good grade reputation worldwide.the plank also widely used for ringlock system and tube system,building, hall, bridge, viaduct, tunnel and other formwork inside the top or as the main frame of the flying mold support.
the scaffold steel plank is made up of q195~q235 steel as raw material and is widely used in all kinds of scaffolding systems.
the steel plank hot dip galvanizing surface & lifespan>5 years,punching design to anti-skid & lighten weight,stifferner design to reinforce the load bearing capacity,better side box design with better abti-deforming capability
it is lightweight and high strength, easy to use and install, and highly reusable. both pre-galvanized and hotgalvanized you can choose depends on your needs.you can also choose diffrent size

Scaffolding Metal Plank System

Metal Plank

Steel plank

Steel Board

Surface

Pre-galvanized,Hot Dipped Galvanized,Black

Standard

EN1004:2004,BS EN12811-1:2003,AS1577,BS 1139

Support

Plain Support & Box Support

Types

Width

Height

Thickness

Length

210

210mm

45mm

1.0-2.0mm

500-4000mm

225

225mm

38mm

240

240mm

45mm

250

250mm

50mm

300

300mm

50mm

230

230mm

63mm

1.5-2.0mm

500-4000mm

Advangtages

1.Better Side box design with better anti - deforming capability

2.Strengthen support designs with much stronger support force

3.500mm support spacing with better anti - deforming capability

4.Hot dip galvanizing surface, with fireproof, anti-corrosion function, lifespan > 5 years

5.Punching design to anti-skid & lighten weight

6.Stiffener design to reinforce the load bearing capacity


Function:

1. Widely used in tube system ,construction & oil and gas project.

2. Steel planks are used to construct a working platform in a scaffold.

3. They are laid directly on the ledgers and secured with the integral lift-out guard.

4. They are safe to walk on and non-slip.
