ringlock diagonal brace,spigot connector,scaffolding tube & coupler

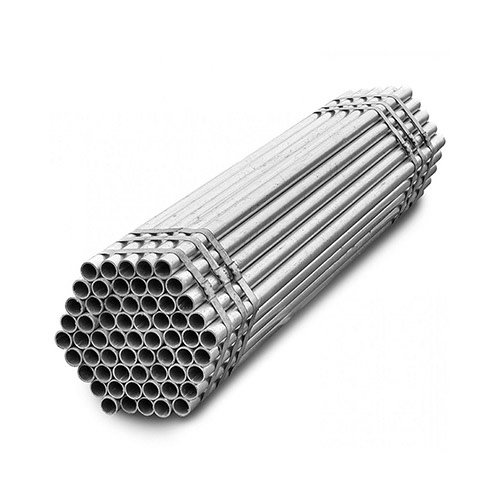

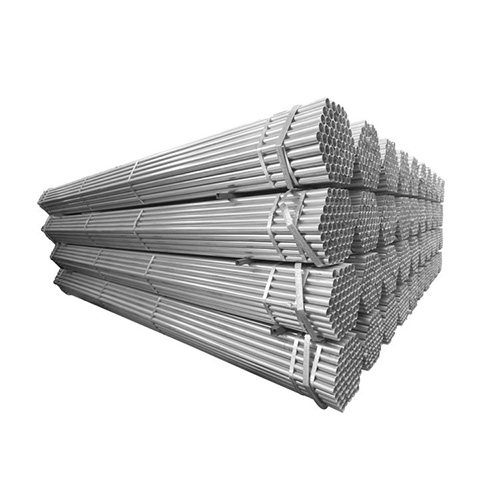

Scaffolding Tube

ringlock diagonal brace,spigot connector,scaffolding tube & coupler
scaffolding tube
scaffolding tube
scaffolding tube
scaffolding tube
scaffolding tube

scaffolding tube

Outer diameter: 25.6mm;33.5mm; 42.5mm;48.3mm;59mm;60.3mm
Thickness: 2.5mm-4.0mm
Grade: stk400/500,q235/q355
Standard: bs1139, en10219, en39, en74

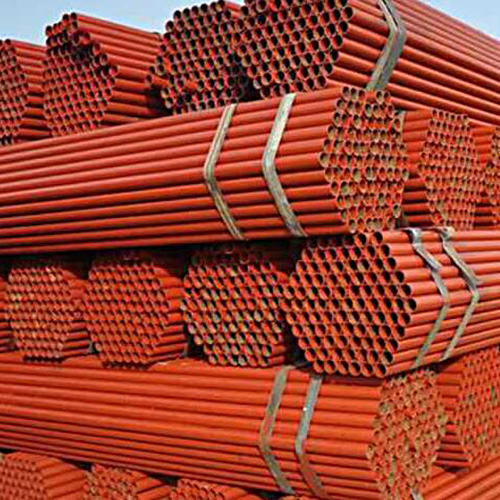

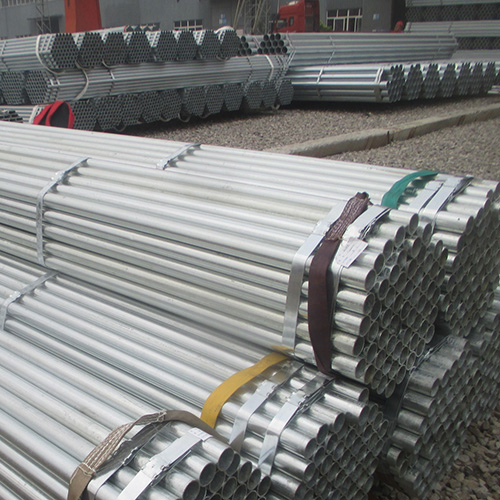

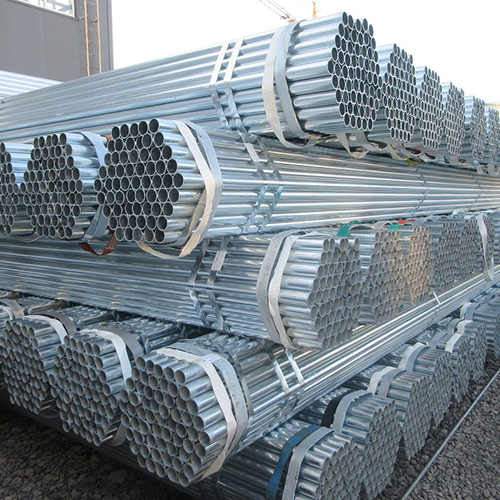

Surface treatment: hdg, pre galvanized, black, painted, anti-rust oil coated, threaded engraved
  • Description
  • Specification
  • Features

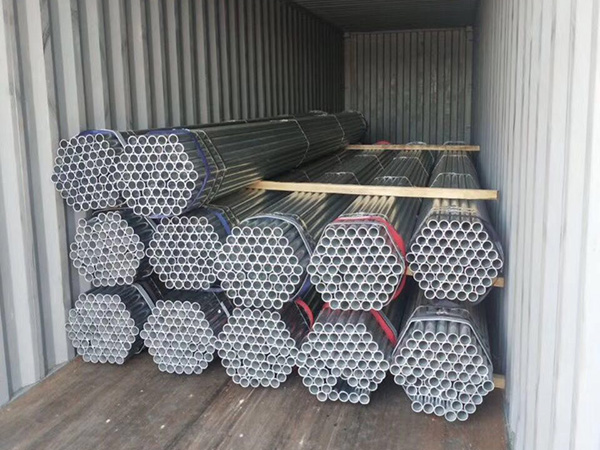

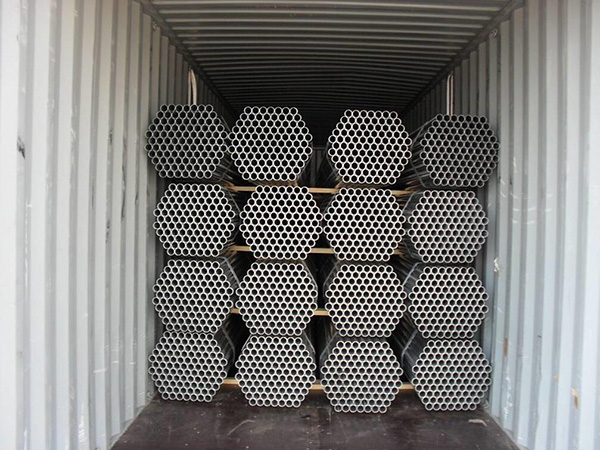

  • Packing
crafted from premium-grade galvanized iron, our scaffolding pipes are built to withstand the toughest conditions and provide unmatched durability and strength. with a smooth finish and uniform thickness, our scaffolding pipes offer excellent corrosion resistance and long-lasting performance.
flexibility and versatility, world scaffold tube and clamp system enables vertical, horizontal and multi-angle connection to adapt to different building facades. made by high-strength steel and standardized wielding technology, the tube and clamp system is more stable than other scaffolding products. with tubes produced based on the bs en39 standard and clamps based on the bs en74 standard, it performs well in terms.
Standard  Material  Diameter  Thickness  Length  Surface Treatment
BS1139-1990/ EN 39-2001 STANDARD Q2351Q355 M48.3mm/ M60.3mm 2.5mm-4.0mm 500mm-6000mm Black, Painted Hot Dipped Galanized, Powder Coating
JIS G3444-2004 STANDARD STK400/ STK500 M48.6mm/ M60.6mm 2.0mm-2.5mm 500mm-6000mm


OTHER SIZES COMMONLY USED FOR SCAFFOLDING MATERIALS
Diameter  Thickness  Length  Surface Treatment
M38mm 3.5mm- 4.0mm 500mm- 6000mm Black, Painted, Hot Dipped Galvanized, Powder Coating Pre-Galvanized
M42.3mm 1.5mm- 3.5mm 500mm- 6000mm
M48.3mm 1.0mm- 4.0mm 500mm- 6000mm Black, Painted, Hot Dipped Gavanized, Powder Coating Pre-Galvanized
M60.3mm 1.0mm- 4.0mm 500mm- 6000mm



You can use Wellmade scaffold tube as raw materials for scaffolding systems like cuplock scaffolding, ringlock scaffolding, kwikstage scaffolding, shoring scaffolding system, and quick-lock scaffolding.
The steel tube shall be manufactured by the continuous weld process or by the electric resistance weld process.
Our scaffolding pipe designed to meet the highest standards of construction and safety. Our GI pipe scaffolding is the ideal solution for all your scaffolding needs all over the world.
It is widely used in various kind of pipes processing field, shipbuilding industry, network structure, steel marine engineering, oil pipelines, oil&gas scaffolding and other industries.
