SMLS & SEAMLESS Steel Pipe
SMLS & SEAMLESS Steel Pipe
SMLS & SEAMLESS Steel Pipe

SMLS & SEAMLESS Steel Pipe

Size: od: 1/8'' ~ 48'' (10.3 ~ 1219mm);wt: sch 10 ~ 160, sch std, sch xs, sch xxs
Length: fixed length (5.8/6/11.8/12mtr), srl, drl
Standard & grade: astm a106, grade a/b/c
Ends: square ends/plain ends (straight cut, saw cut, torch cut), beveled/threaded ends
Delivery: within 30 days and depends on your order quantity
Payment: tt, lc , oa , d/p
Packing: bundled/in bulk, plastic caps plugged, waterproof paper wrapped
Usage: used for low pressure liquid delivery, such as water, gas, and oil
  • Description
  • Specification
  • Features
  • Packing
mandrel mill process

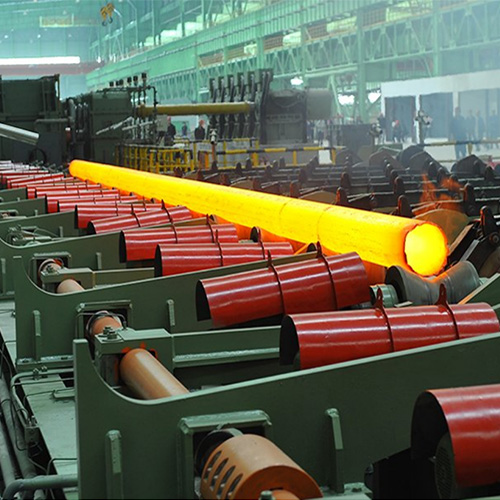

in the mandrel mill process, a solid round (billet) is used. it is heated in a rotary hearth heating furnace and then pierced by a piercer. the pierced billet or hollow shell is rolled by a mandrel mill to reduce the outside diameter and wall thickness which forms a multiple length mother tube. the mother tube is reheated and further reduced to specified dimensions by the stretch reducer. the tube is then cooled, cut, straightened and subjected to finishing and inspection processes before shipment.

manner man plug mill process
in the plug mill process, a solid round (billet) is used. it is uniformly heated in the rotary hearth heating furnace and then pierced by a manner man pieces. the pierced billet or hollow shell is roll reduced in outside diameter and wall thickness. the rolled tube simultaneously burnished inside and outside by a reeling machine. the reeled tube is then sized by a sizing mill to the specified dimensions. from this step the tube goes through the straightener. this process completes the hot working of the tube. the tube (referred to as a mother tube) after finishing and inspection, becomes a finished product.
