British Board Retaining Coupler

Type: British Board Retaining Coupler, Board Retaining Clamp
Standard: BS1139/EN74
Material: Q235
Surface Treatment: Electro-galvanized, Hot Dip Galvanized
MOQ: 5 Tons
Place of Origin: Tianjin, China
Shipping Port: Tianjin Port
Delivert Time: Within 20-30 days after receiving the LC or Deposit
Sample: Availbale, Sample for Free
  • Description
  • Specification
  • Features
  • Packing

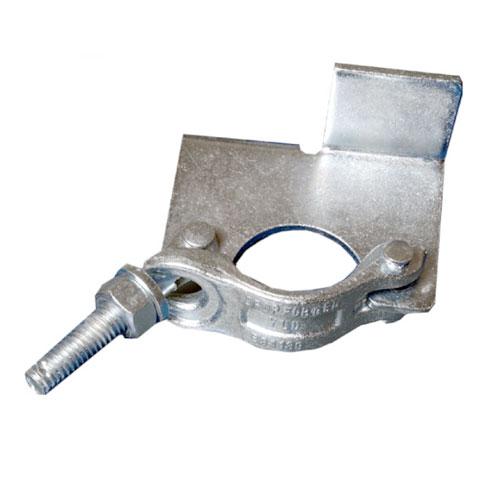

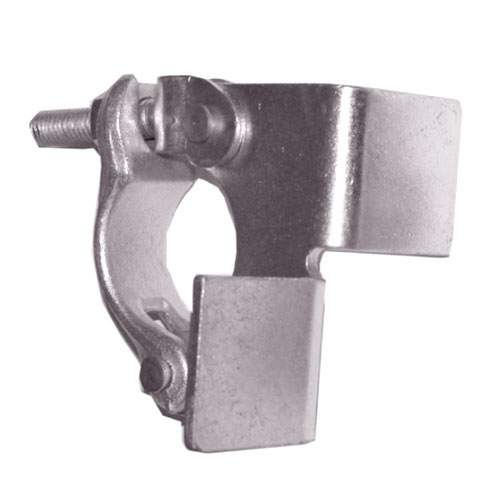

forged board clamps with forged covers and pressed bodies. the scaffold coupler covers and bodies are connected by scaffold bolts and nuts, rivets, etc.
material--the product material is q235 carbon steel which is higher than the standard as the raw material.
bolt--the bolt is 8.8 grade high-strength bolt, which ensures the quality.
quality assurance, more resistance to falls, improve the efficiency of scaffolding removal, saving time.
products using advanced technology, avoid the production malpractice of old craft, causes the product the anti-deformation and the anti-stretching performance to be stronger, more fits the scaffolding, more firm, not easy to slide.
according to the professional design and advanced technology, all products are manufactured in strict accordance with en74 and bs1139 standards, quality guarantee, ensure construction safety and personnel safety.
board clamp is a type of scaffolding coupler used to retain scaffold boards to scaffold main structure. include forged board retaining coupler (brc), pressed steel board retaining clamps, lightweight limpet clamps, and toe board clamps, etc.
scaffold board clamps sizes are designed according to the height of the scaffold boards and planks. you can use it in many different types of scaffolding boards and planks including steel scaffold boards, wood planks, toe boards, etc. the height of the scaffold boards could be 38mm to 76mm.

Easy maintenance.
Easy maintenance. Not easy to rust and break, maintenance is very convenient after use, which not only reduces the difficulty of maintenance, but also saves the maintenance cost, reduces the manpower and material resources of maintenance, and increases the efficiency and quality of construction.

Strong corrosion resistance.
After passivation and galvanizing, the anti-rust ability of the whole piece is greatly improved, and its service life is long, far exceeding the service life of pressed couplers.

Strong resistance to stripping.
With the new connection, the new nut ensures that the pressed couplers can be fixed vertically and firmly in the case of steel tube deformation, eliminating the possibility of steel tube slippage.

Strong anti-deformation ability.
Compared with the ordinary pressed couplers, because of the different manufacturing processes, it breaks through the limitation of the traditional stamping process on material thickness, which can completely guarantee the non-deformation in the use process, thus ensuring the safety and reuse of products.
