kwikstage transom,scaffolding tube & coupler,ringlock base collar

Scaffolding Coupler

kwikstage transom,scaffolding tube & coupler,ringlock base collar
British Drop Forged Half Coupler
British Drop Forged Half Coupler,erw pipe,steel plank,h-frame & a-frame
kwikstage transom,scaffolding tube & coupler,ringlock base collar

British Drop Forged Half Coupler

Type: British Drop Forged Half Coupler, Scaffold Half Coupler, Forged Half Swivel Coupler
Standard: BS1139/EN74
Material: Q235
Surface Treatment: Electro-galvanized, Hot Dip Galvanized
Process Technology: Drop Forged
MOQ: 5 Tons
Place of Origin: Tianjin, China
Shipping Port: Tianjin Port
Delivert Time: Within 20-30 days after receiving the LC or Deposit
Sample: Availbale, Sample for Free
  • Description
  • Specification
  • Features
  • Packing

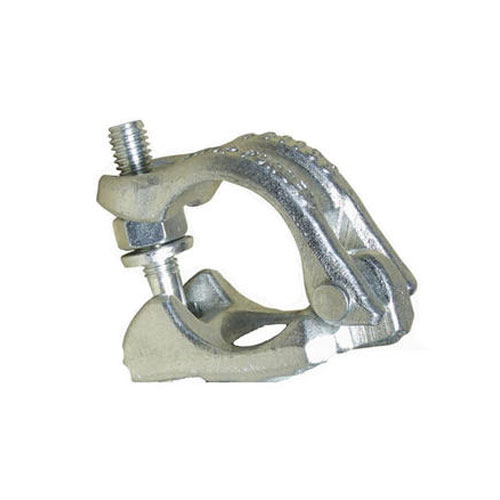

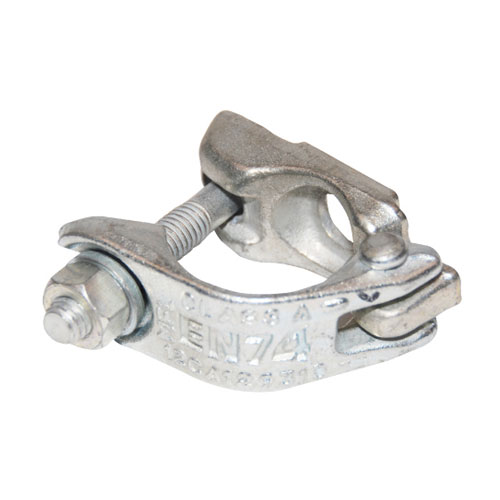

drop forged half coupler british type is made to connect 48.3mm tube.
unit weight:0.65kg
nut size: 1/2″ * 21mm
customized marks can be made as required
surface finish: electro galvanized, or hot dip galvanized
meeting en74 and bs1139 standard
packing: 100pcs in one bag, 50 bags are packed on one wood or steel pallet
rich experience in producing all types of scaffolding couplers, pressed type and drop forged type. we have our own forging line.
fast delivery
48.3mm
Easy maintenance.

Easy maintenance. Not easy to rust and break, maintenance is very convenient after use, which not only reduces the difficulty of maintenance, but also saves the maintenance cost, reduces the manpower and material resources of maintenance, and increases the efficiency and quality of construction.


Strong corrosion resistance.

After passivation and galvanizing, the anti-rust ability of the whole piece is greatly improved, and its service life is long, far exceeding the service life of pressed couplers.


Strong resistance to stripping.

With the new connection, the new nut ensures that the pressed couplers can be fixed vertically and firmly in the case of steel tube deformation, eliminating the possibility of steel tube slippage.


Strong anti-deformation ability.

Compared with the ordinary pressed couplers, because of the different manufacturing processes, it breaks through the limitation of the traditional stamping process on material thickness, which can completely guarantee the non-deformation in the use process, thus ensuring the safety and reuse of products.
